Ultimate 4WD™ Electric Secondary Park Brake

Jump to

The Bendix Electric Secondary Park Brake offers completely ‘bolt-on’ fitment and complements the existing OE park brake, with no change to the vehicle’s hydraulic mechanism, pad shape and original park brake.

Say goodbye to roll aways

To provide additional holding ability, the Bendix Electric Secondary Park Brake features rear left and right single piston calipers that act on the rear disc brake rotors, minimising the likelihood of ‘roll aways’ on steep hills, a scenario that can be worse when the vehicle is heavily loaded or towing.

Peace of mind

Also included in each kit is the wiring harness and attractive OEM style control switch for dashboard installation. For added convenience and peace of mind, the Electric Secondary Park Brake kit maintains the vehicle’s ADR compliance.

Bolt on fitment - no engineering required

Retains OE parkbrake

Automatic engagement options

Secure hold

Auto safe engagement

Unobtrusive cabin switch

Features

Bolt on fitment
No changes to vehicle hydraulics
Retains OE park brake
Maintains ADR
EPB calipers engage directly with the rotor
Significantly improved hill holding
Provides additional security when loaded or towing
Designed for how you use your LandCruiser
Can be configured for ‘Auto on’ application
Ultimate 4WD™ Electric Park Brake Caliper meets the IP67 waterproof requirement in GB/T 4208

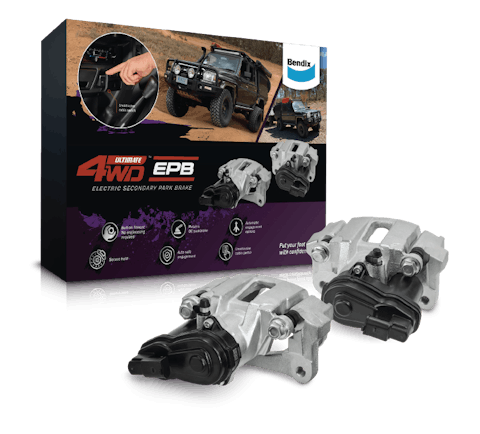

Kit Contents

2 × Brake Calipers with EPB Functionality
1 × Wiring loom
1 × Electronic Control Module
1 × Control Switch
1 × DB1200 Ultimate 4WD Brake Pads

Installation

For a much-needed extra level of insurance against rollaways, Bendix now offers the Bendix Ultimate 4WD™ Electronic Park Brake! In this Bendix Trade Training Video, we show you how to install the all-new Bendix Ultimate 4WD™ Electronic Park Brake to the 70 Series Toyota LandCruiser!

NOTE: Installation by qualified automotive technicians only!

Instructions

Bendix Ultimate 4 WD EPB Fitting Instructions PRJ08453
(5.08mb)
Download PDF
Bendix U4 WD EPB Service Mode Instructions PRJ08456 v3
(267.2kb)
Download PDF
Bendix U4 WD EPB Wiring Harness Components PRJ 08523
(269.79kb)
Download PDF

IP Rating

Bendix U4 WD EPB Caliper IP Rating PRJ 08470
(268.06kb)
Download PDF

Brochures

U4 WD Electric Secondary Park Brake Brochure February 2024 PRJ 08421
(5.86mb)
Download PDF
Bendix U4 WD Upgraded Catalogue PRJ 08547 April 2024 v2
(6.78mb)
Download PDF
Bendix Product Master Catalogue PRJ 08473 April 2024
(6.88mb)
Download PDF
